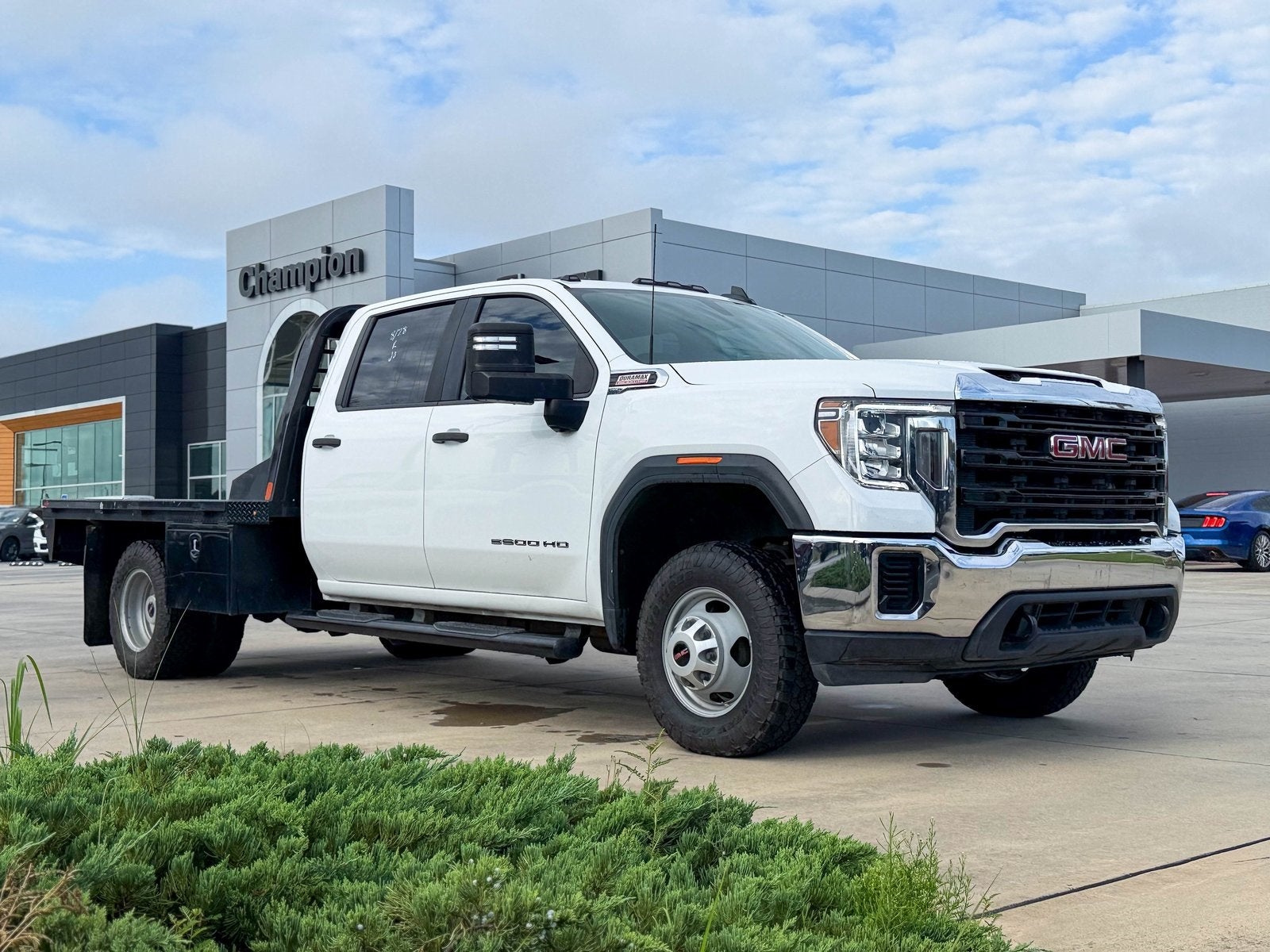

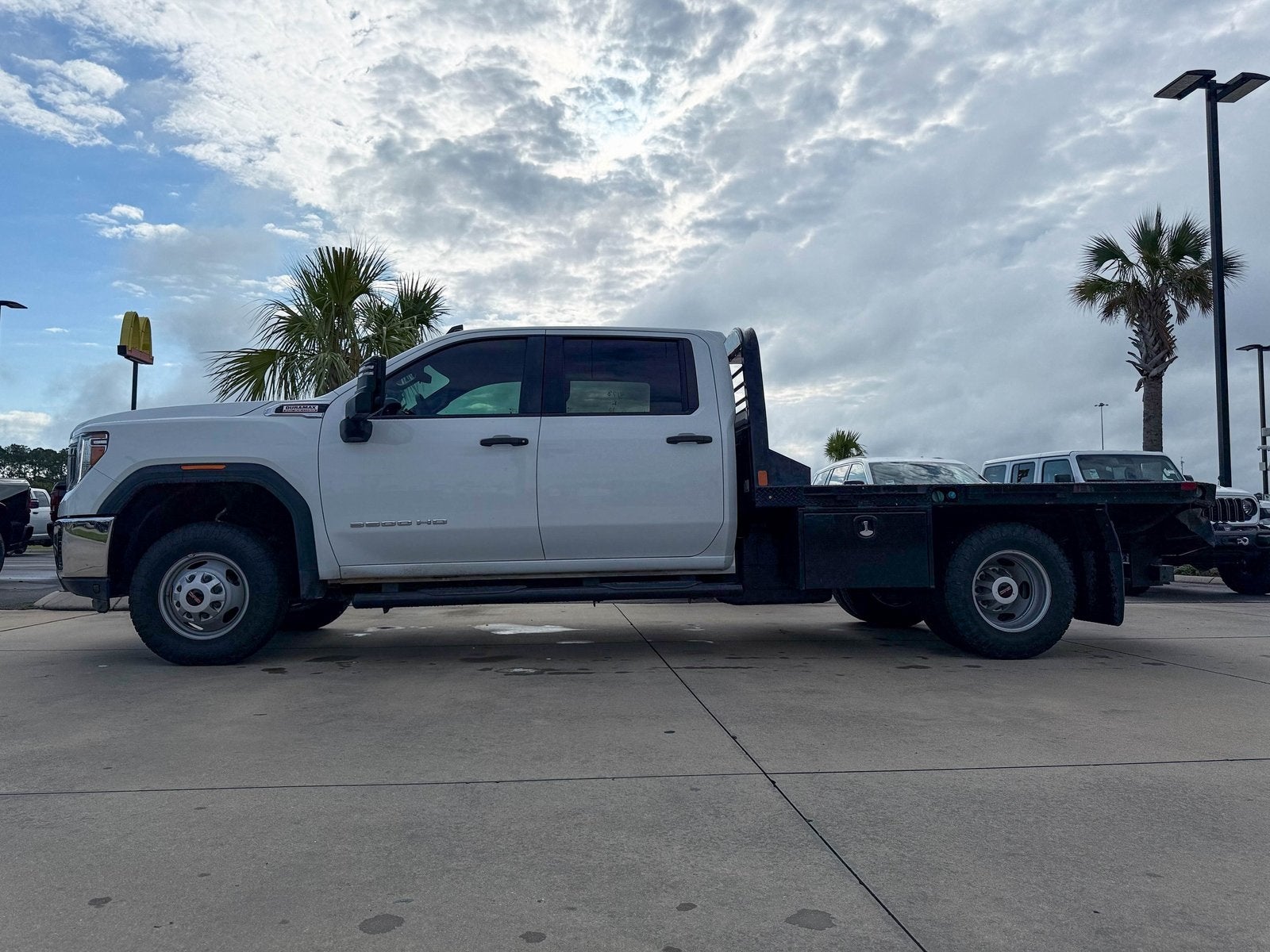

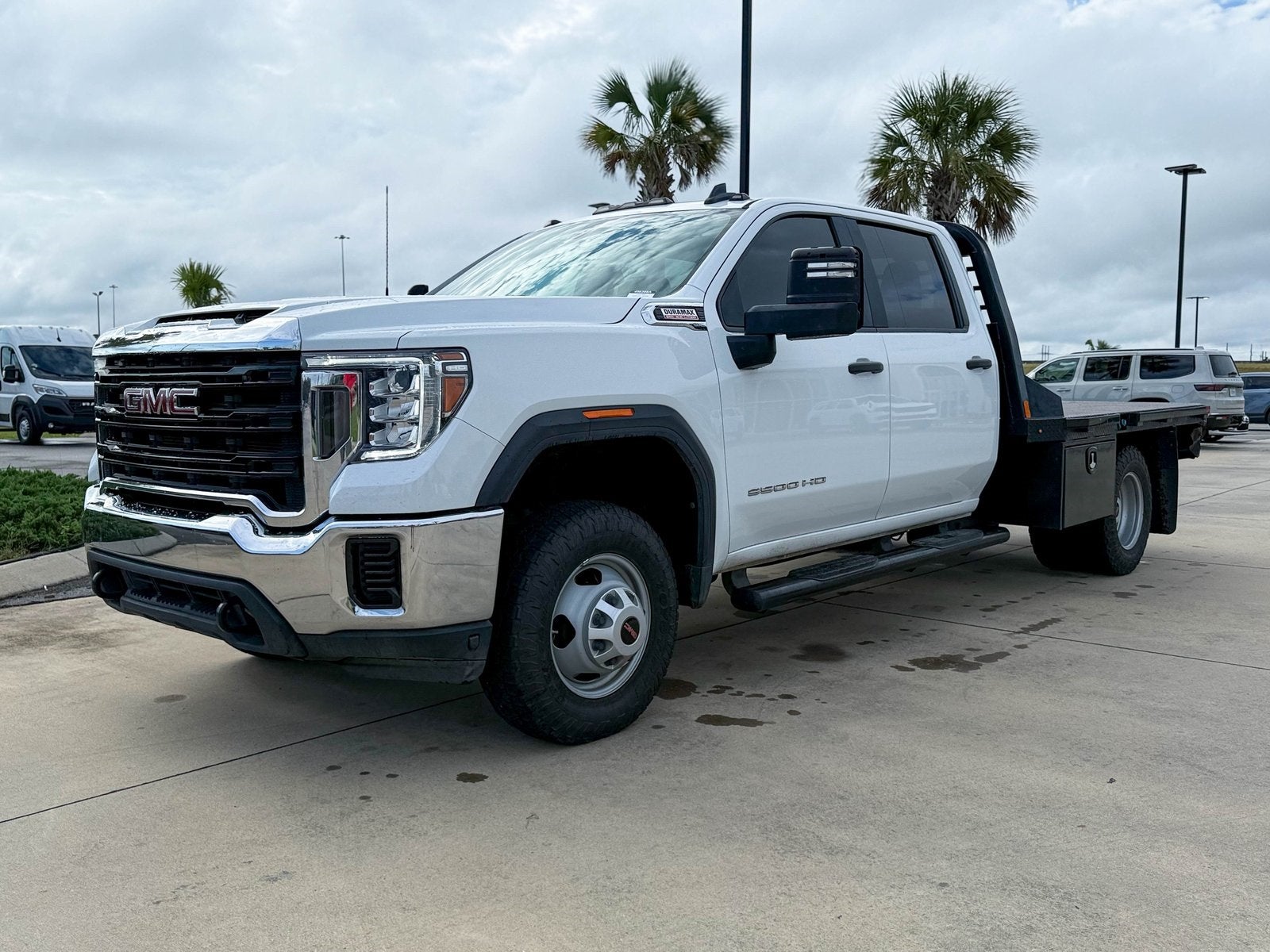

2022 GMC Sierra 3500HD Chassis

• Tires, LT235/80R17E all-season highway, blackwall
• Spare tire delete Deletes the spare tire and wheel.

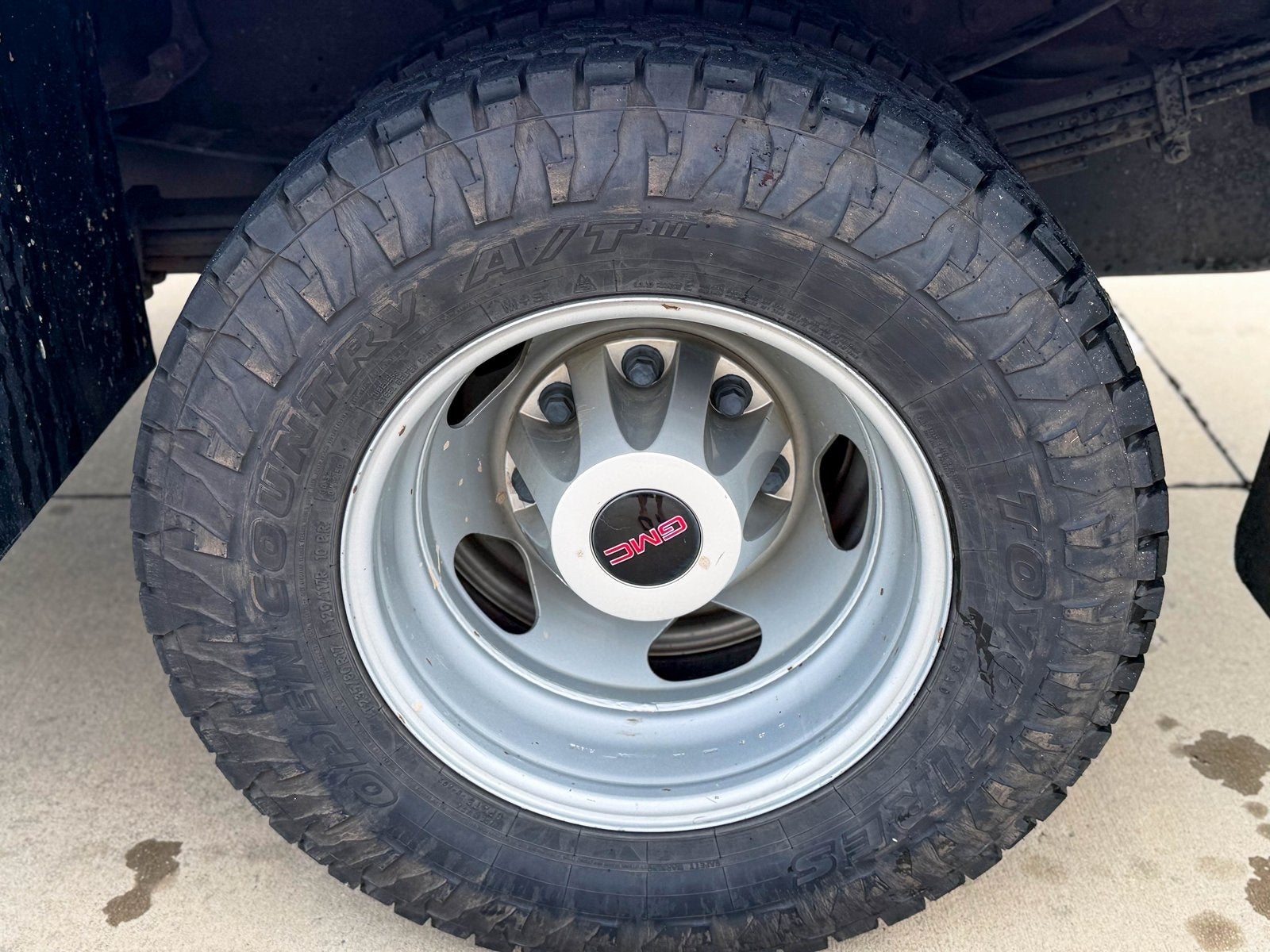

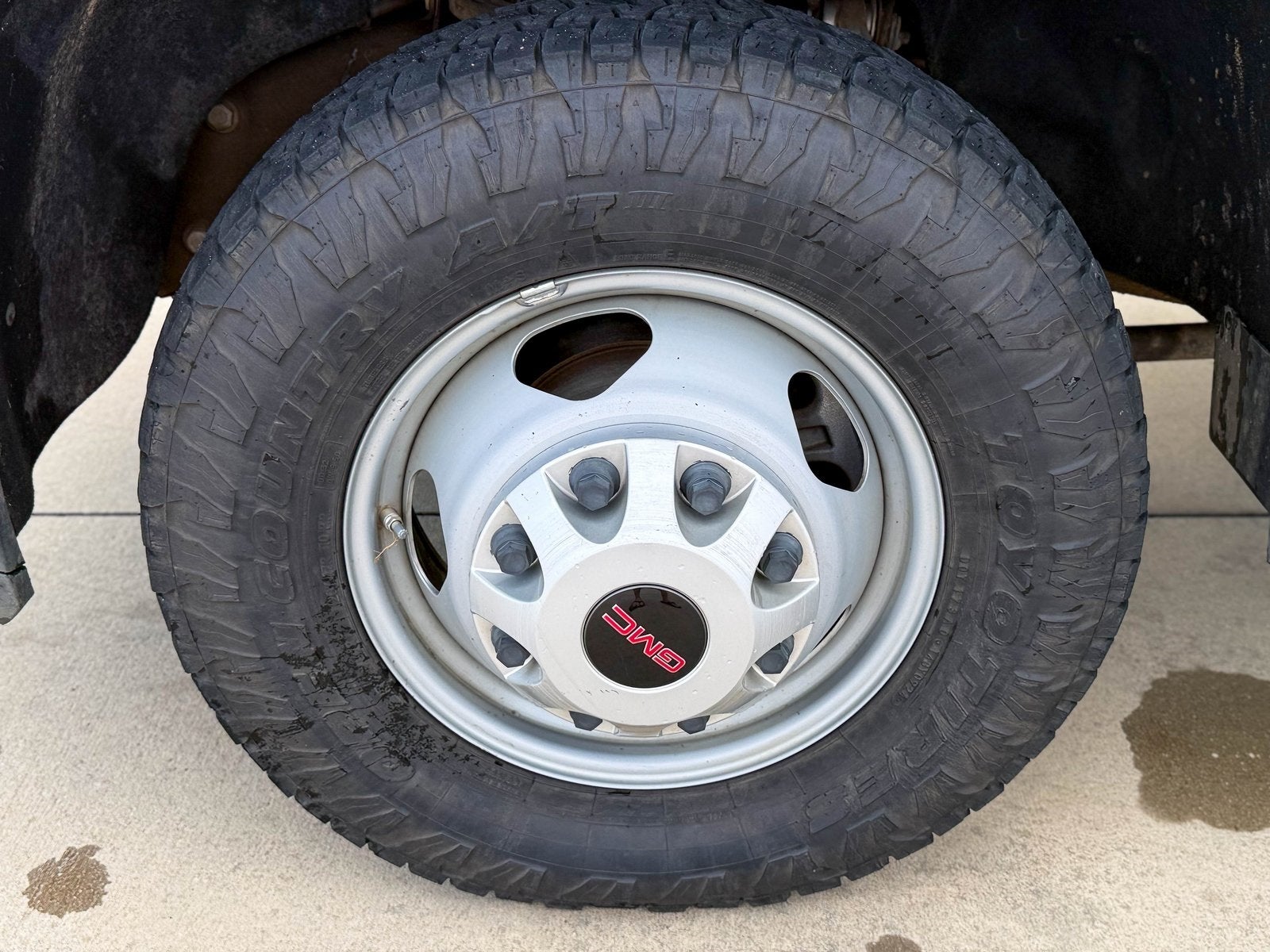

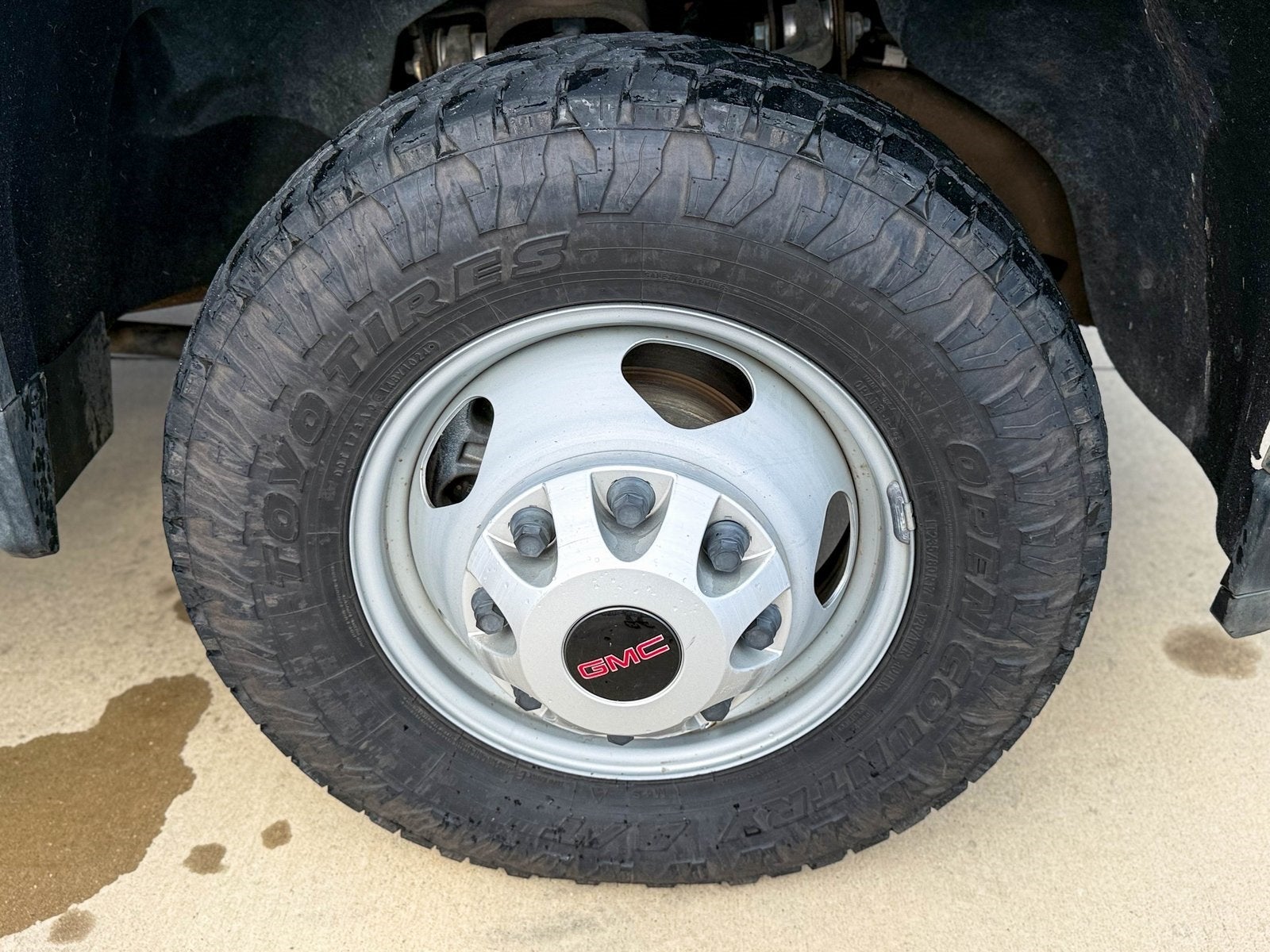

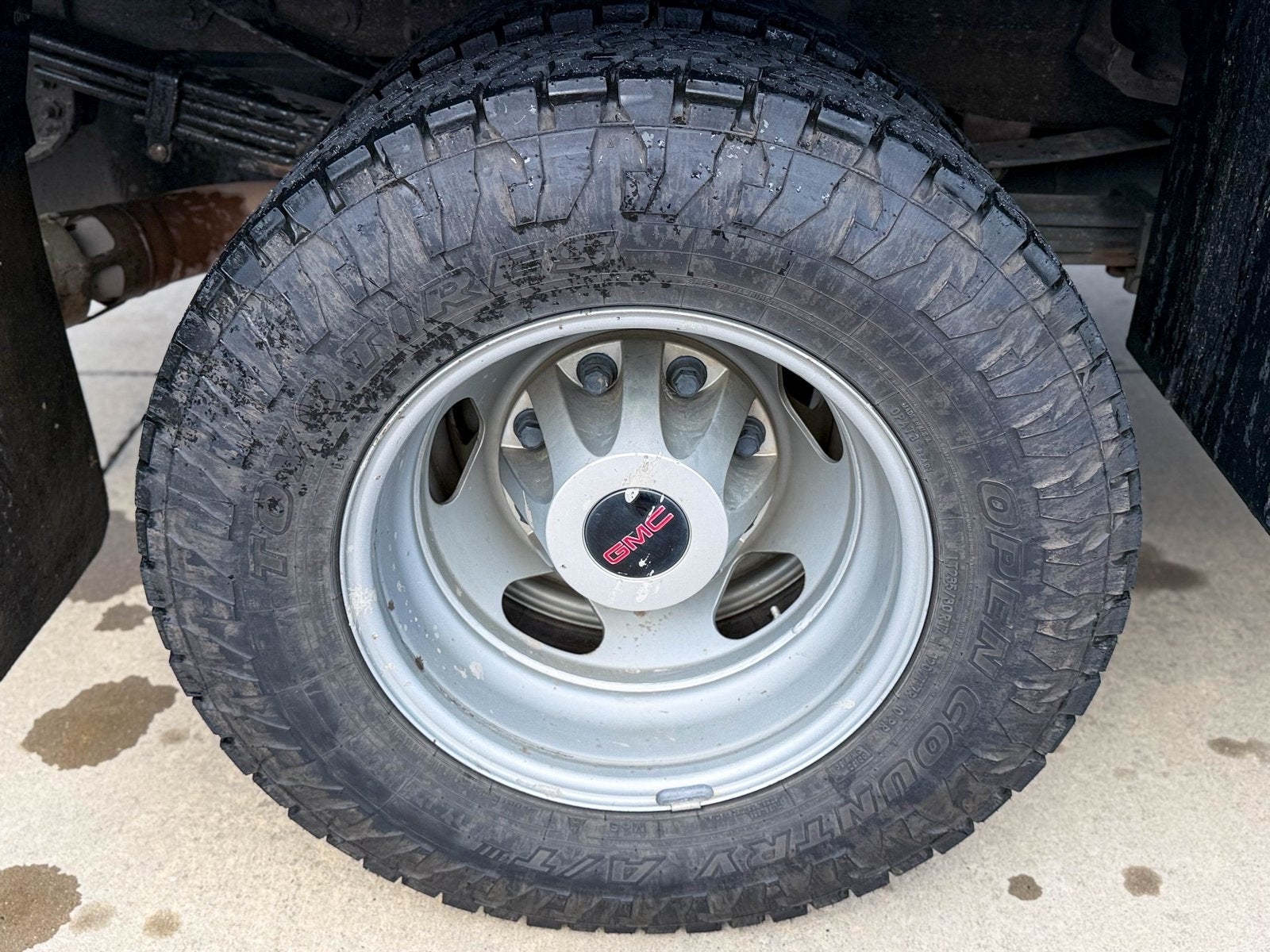

• Wheels, 17" (43.2 cm) painted steel
• Wheel trim, painted center caps
• Bumper, front chrome lower
• Bumper, rear, delete
• Moldings, beltline, Black

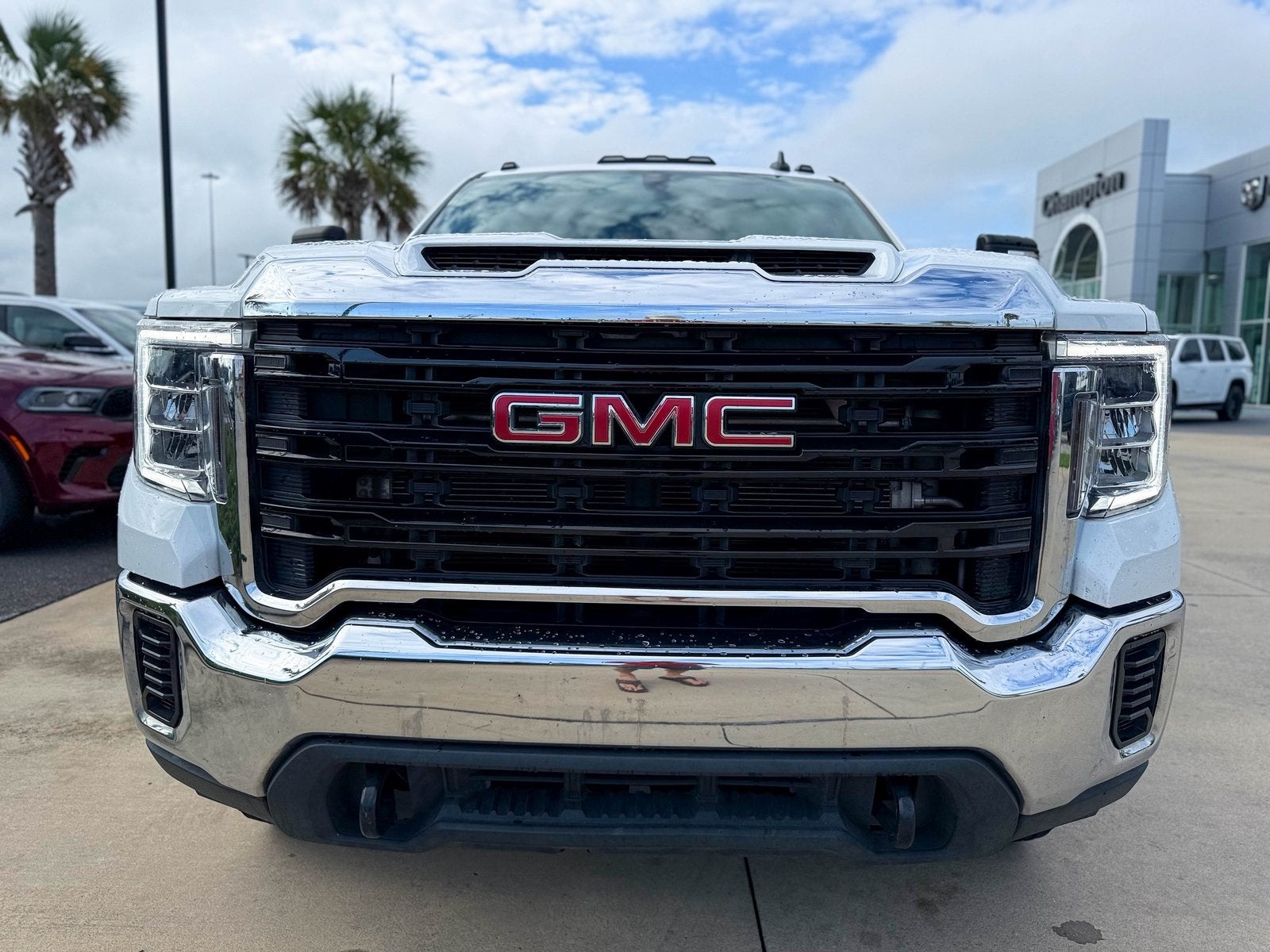

• Grille (Chrome surround with Black mesh.)
• Headlamps, LED reflector with incandescent turn signals and LED signature Daytime Running Lamps
• Lamps, Smoked Amber roof marker, (LED)
• Lamps, cargo area, cab mounted integrated with center high mount stop lamp with switch in bank on left side of steering wheel
• Mirrors, outside high-visibility vertical trailering lower convex mirrors, manual-folding/extending (extends 3.31" [84.25mm]), molded in Black
• Glass, solar absorbing, tinted
• Door handles, Black grained

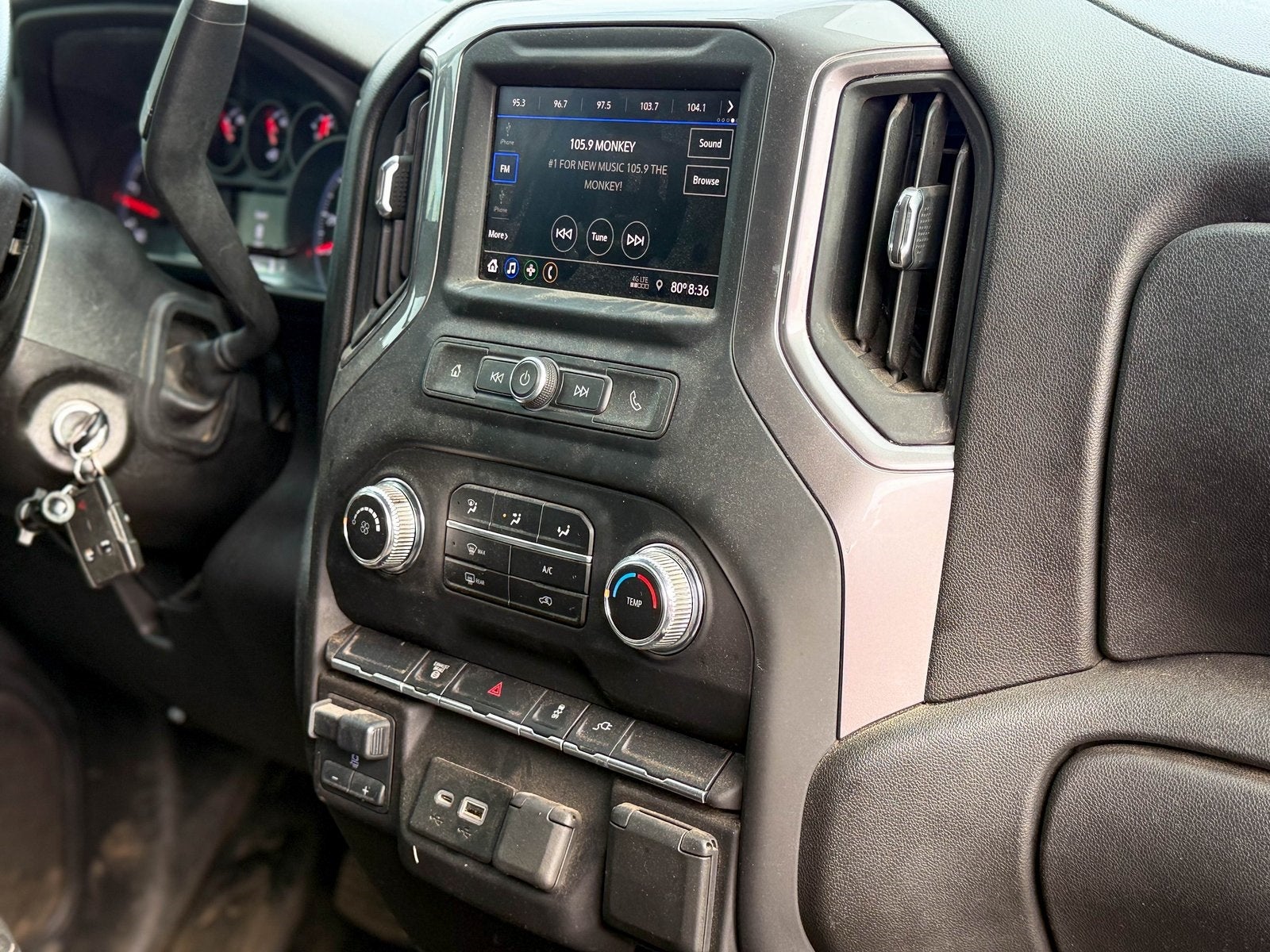

• Audio system, GMC Infotainment System with 7" diagonal color touch-screen, AM/FM stereo with seek-and-scan and digital clock, includes Bluetooth® streaming audio for music and select phones; featuring wired Android Auto and Apple CarPlay capability for compatible phones
• Audio system feature, 6-speaker system (Requires Crew Cab model.)
• Bluetooth® for phone, connectivity to vehicle infotainment system

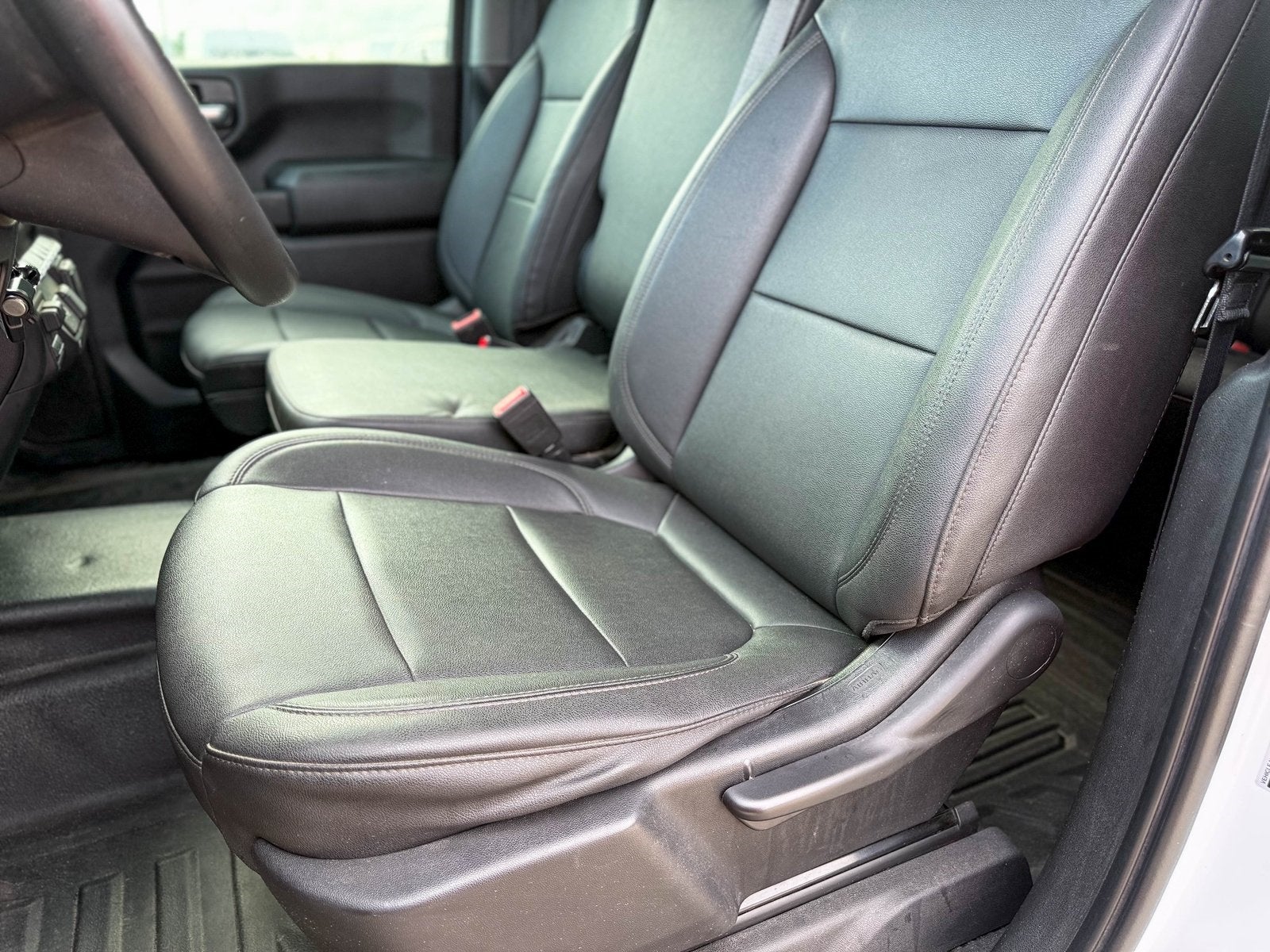

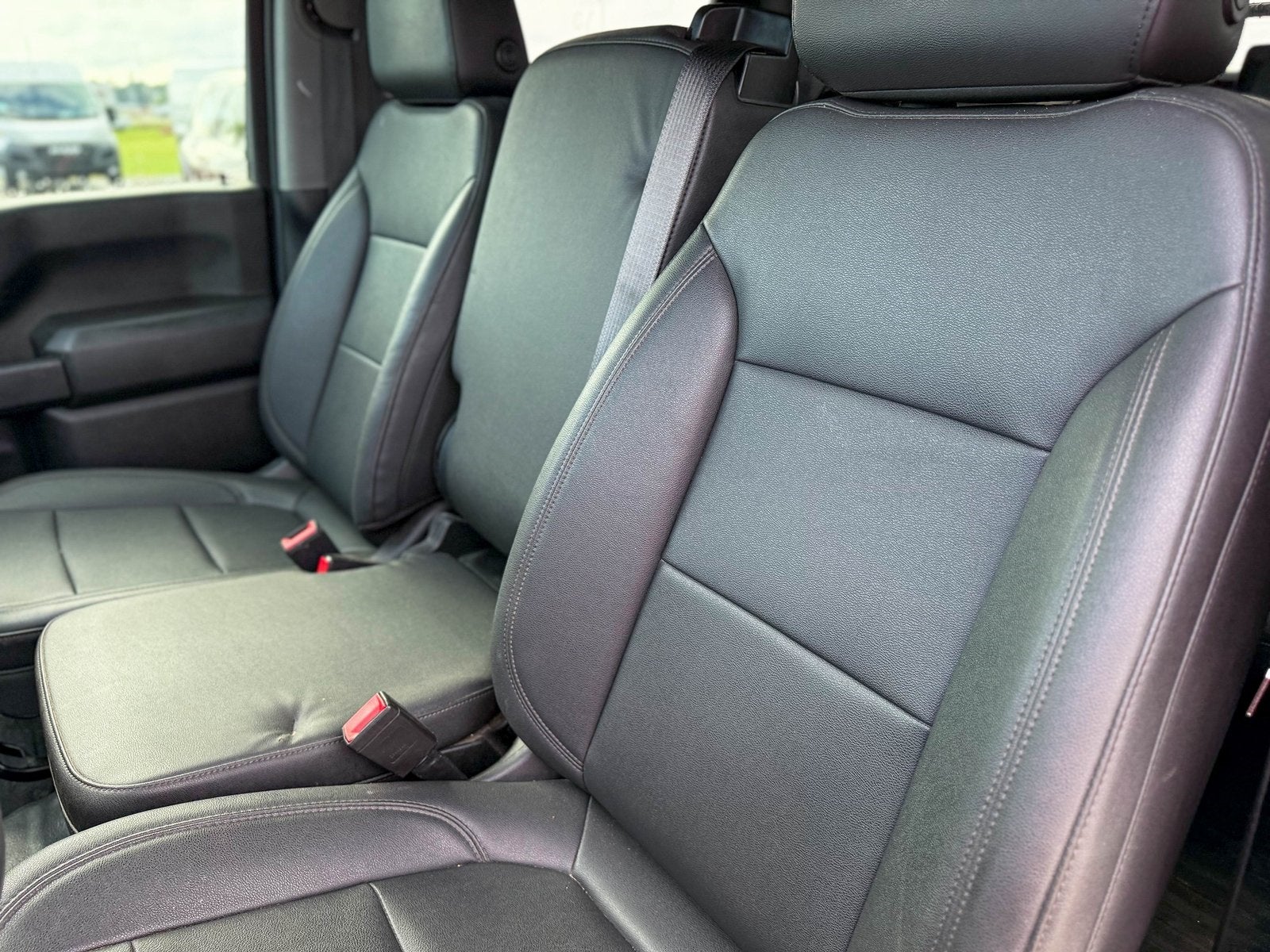

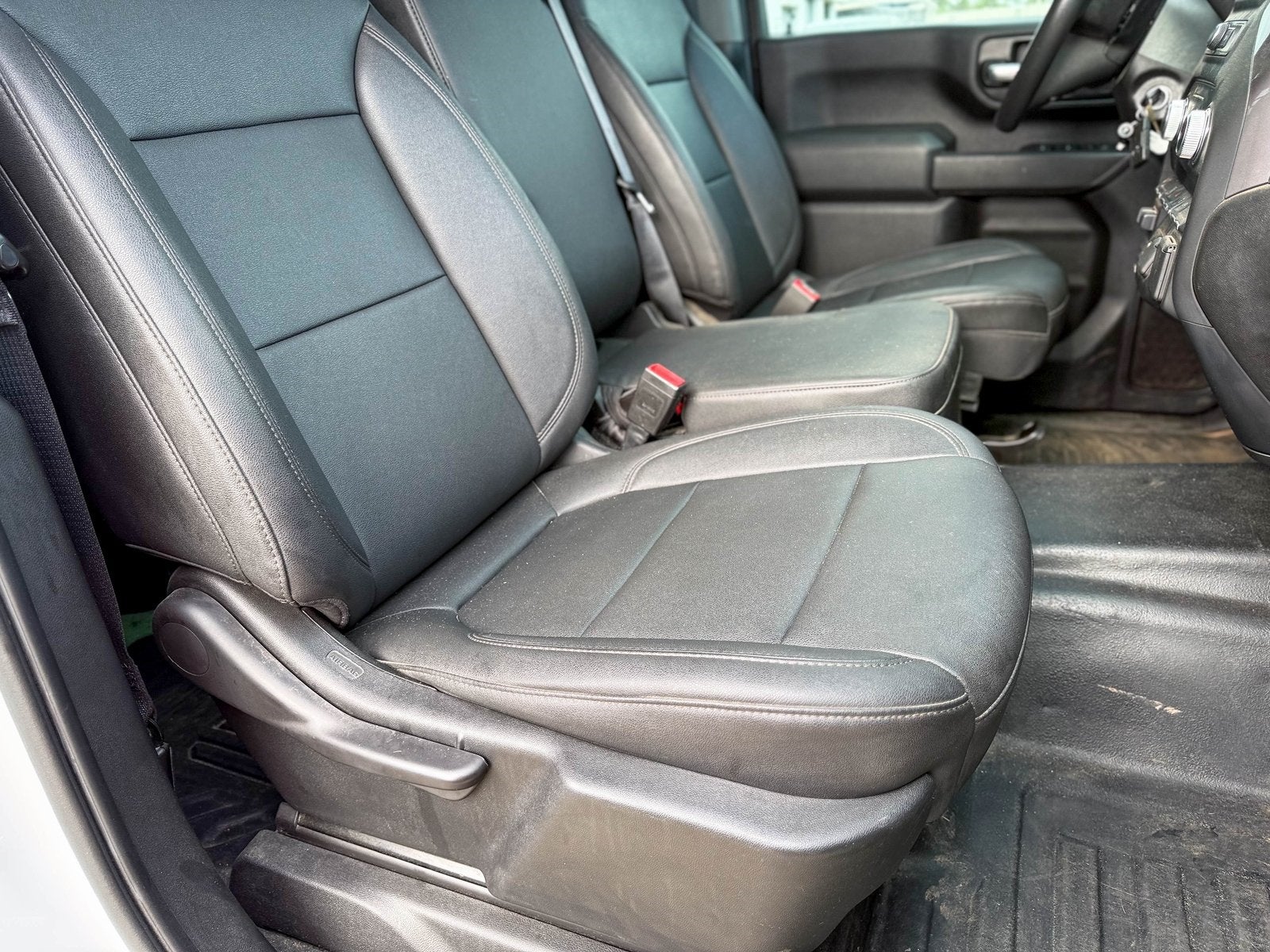

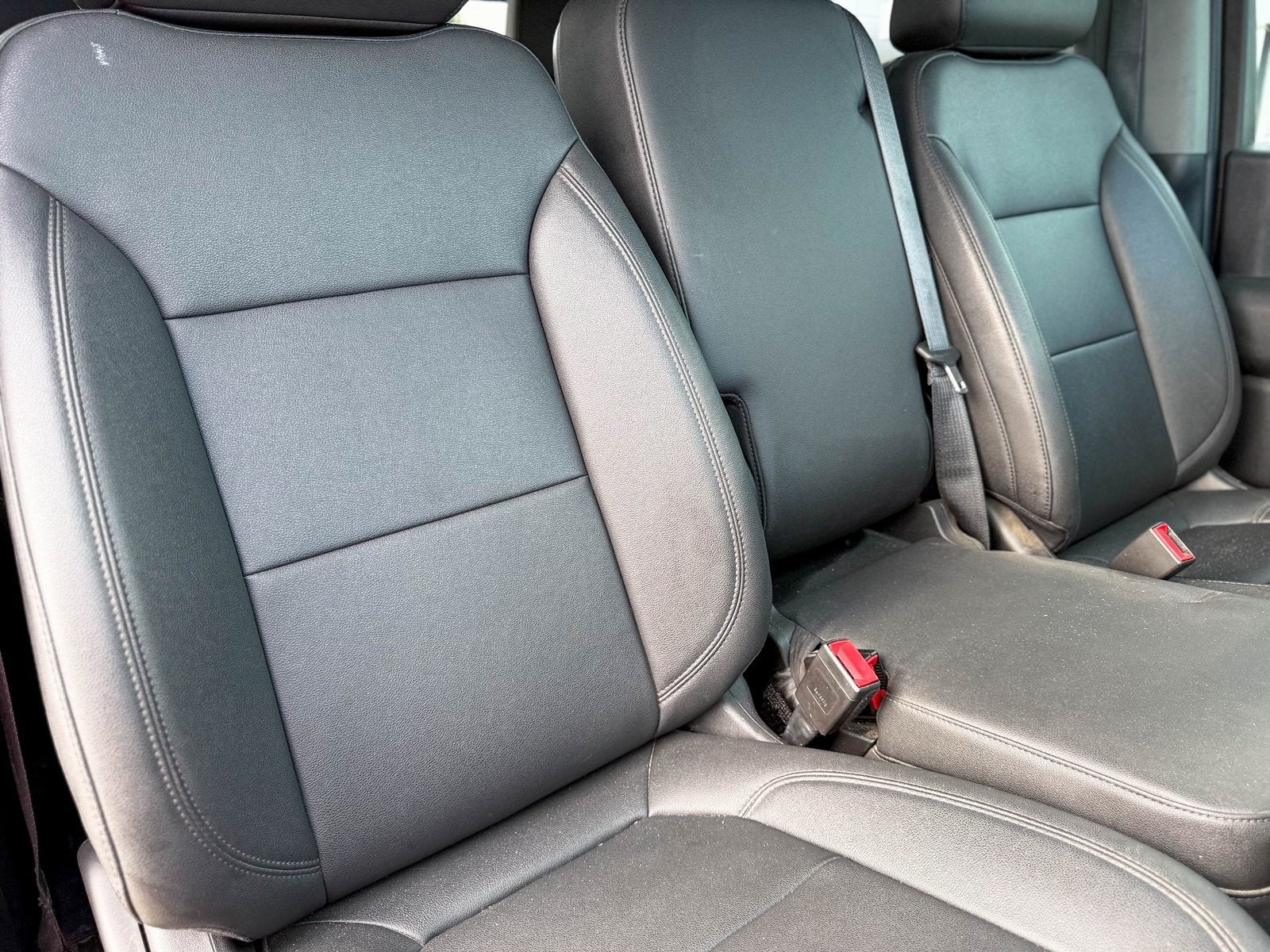

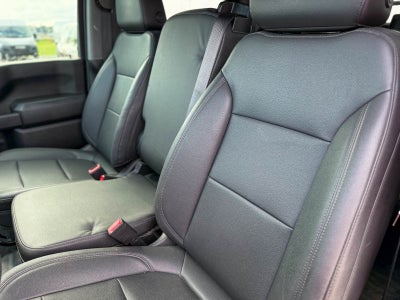

• Seats, front 40/20/40 split-bench with upper covered armrest storage and fixed lumbar (Standard on Crew Cab models only.)
• Seat adjuster, driver 4-way manual
• Seat adjuster, passenger 4-way manual
• Vinyl seat trim

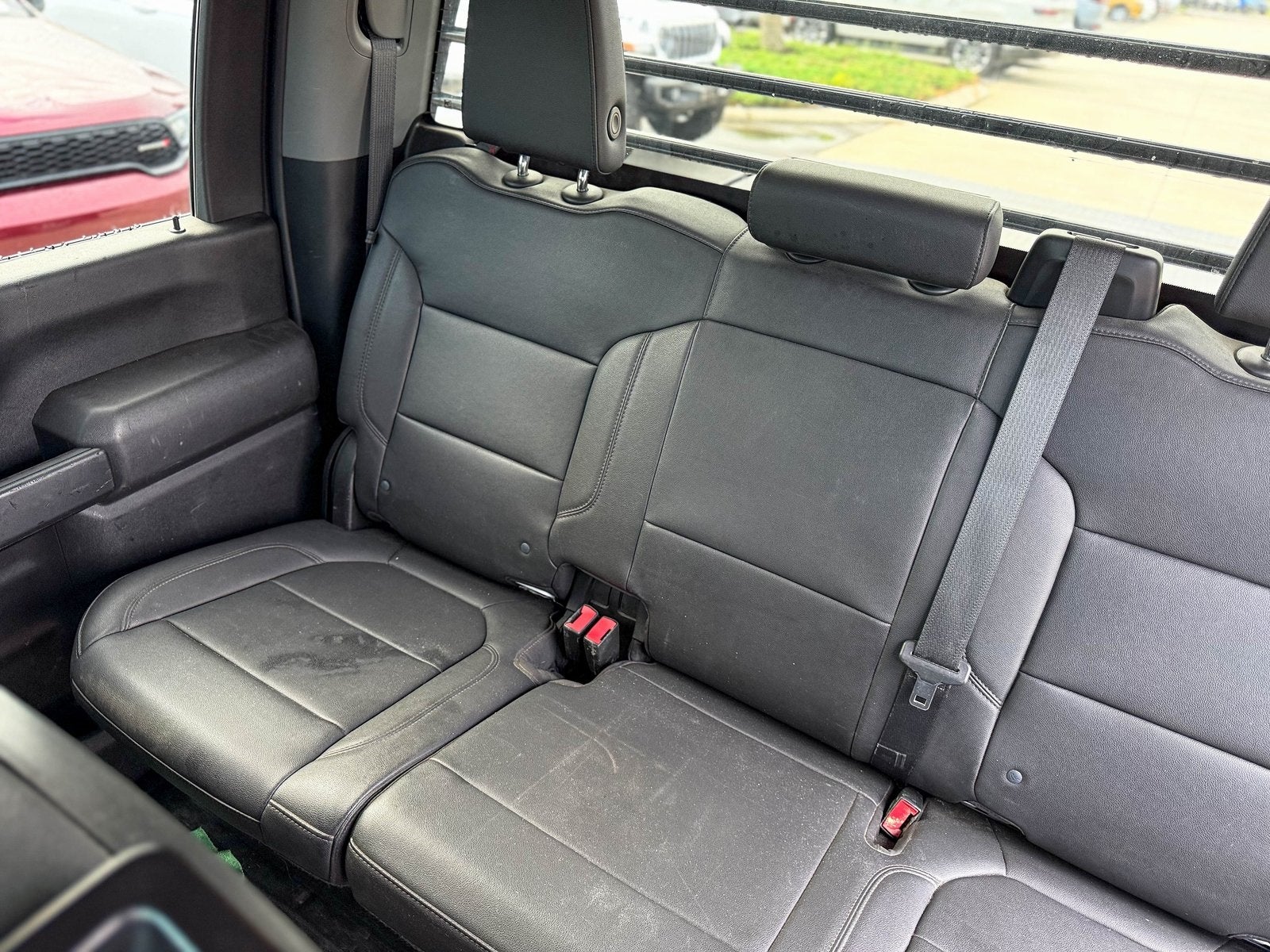

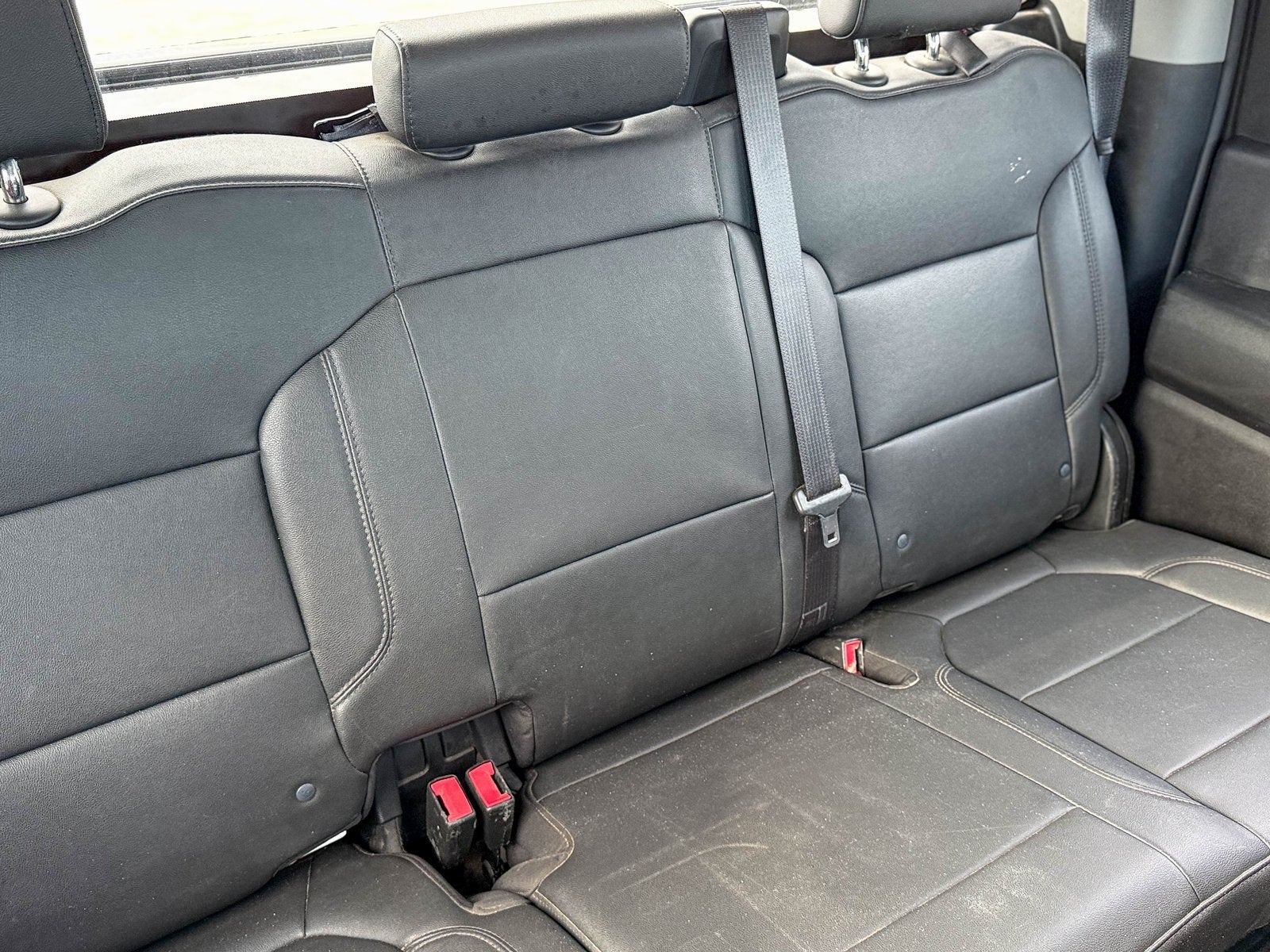

• Seat, rear 60/40 folding bench (folds up), 3-passenger, (includes child seat top tether anchor) (Not available with Regular Cab model.)
• Floor covering, rubberized-vinyl (Not available with LPO floor liners.)

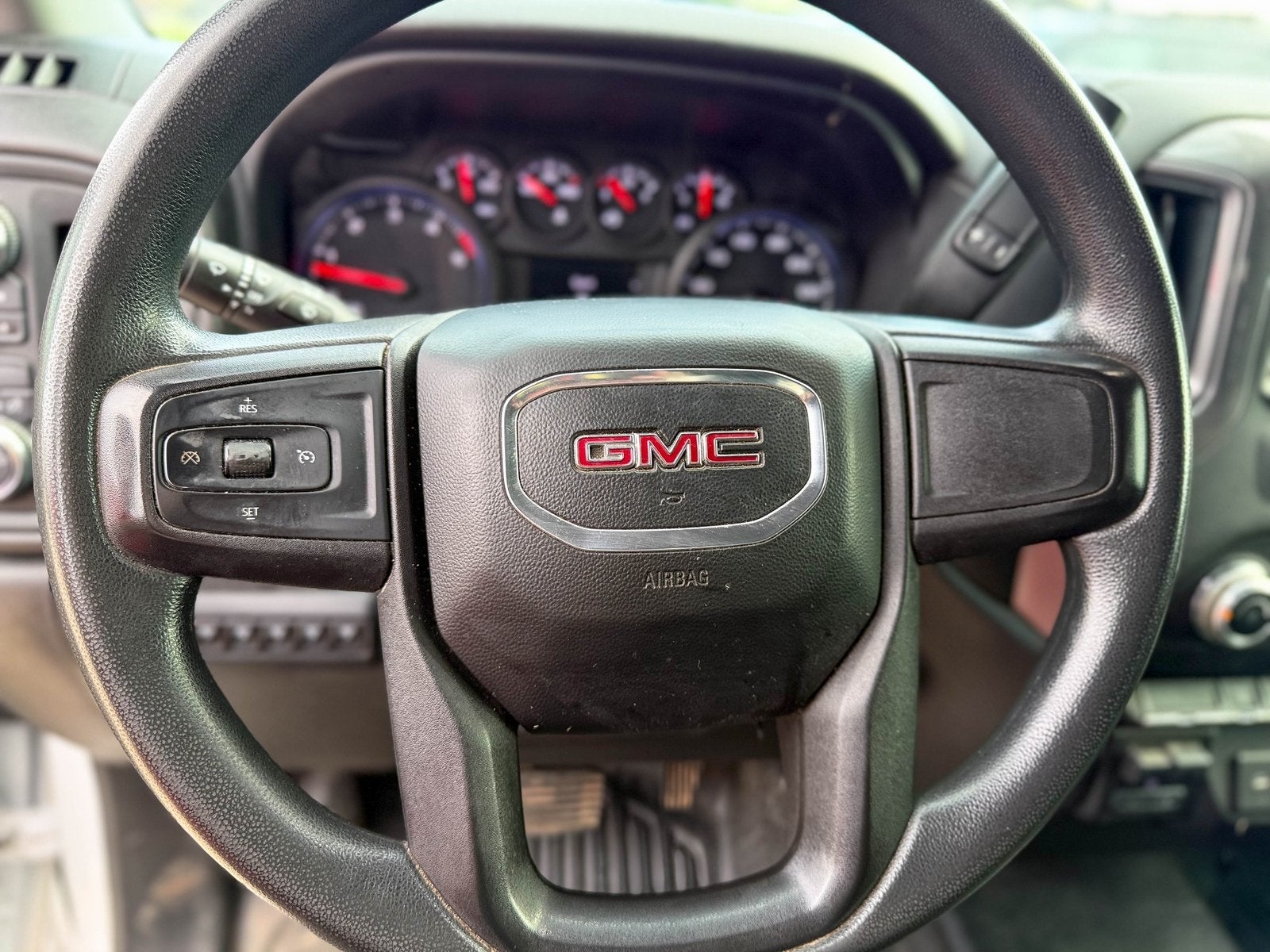

• Steering column, Tilt-Wheel, manual with wheel locking security feature
• Steering wheel, urethane

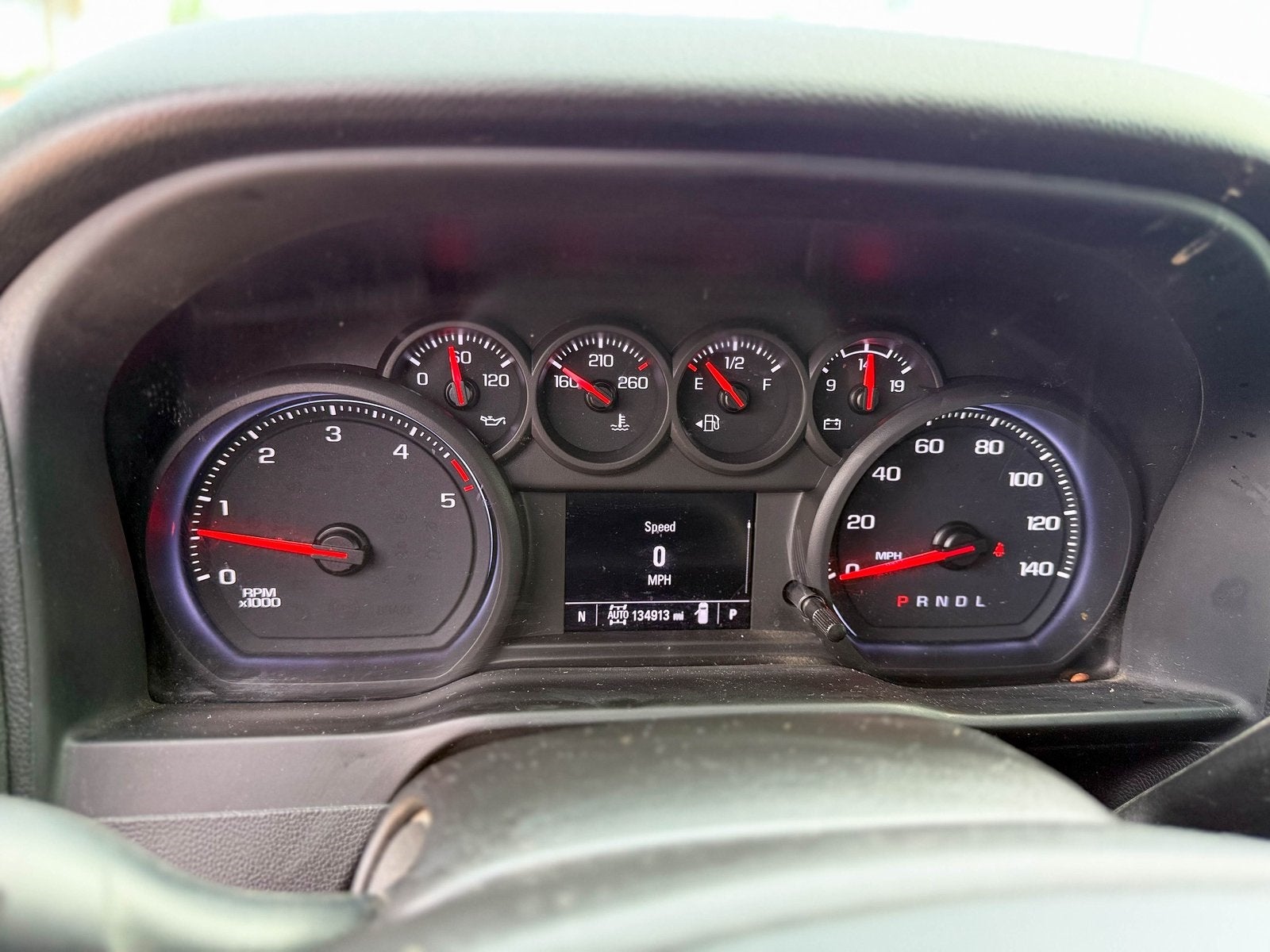

• Driver Information Center, 3.5" diagonal monochromatic display
• Exterior Temperature Display, located in radio display
• Windows, power front, drivers express up/down (Standard on Crew model.)
• Window, power front, passenger express down (Standard on Crew Cab models.)
• Windows, power rear, express down (Not available on Regular Cab models.)
• Door locks, power (Standard on Crew Cab models.)
• Power outlet, front auxiliary, 12-volt
• USB ports, 2 (first row) located on instrument panel
• Air conditioning, single-zone
• Air vents, rear (Not available with Regular Cab model.)
• Mirror, inside rearview, manual tilt
• Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted
• Back-up alarm calibration This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Brake lining wear indicator
• Daytime Running Lamps, LED signature lighting
• Airbags, Dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Tire Pressure Monitoring System with Tire Fill Alert (does not apply to spare tire)
• Rear Seat Reminder (Requires Crew Cab model.)
• Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver

CONVENIENCE PACKAGE

• includes (AQQ) Remote Keyless Entry
• (AKO) tinted glass
• (C49) rear-window defogger
• (DBG) outside power-adjustable vertical trailering with heated upper glass mirrors and (K34) cruise control

PRO PREFERRED EQUIPMENT GROUP

• includes standard equipment

SEATS, FRONT 40/20/40 SPLIT-BENCH

• with upper covered armrest storage and fixed lumbar (STD)

TIRES, LT235/80R17E ALL-SEASON HIGHWAY, BLACKWALL

• (STD)

WI-FI HOTSPOT CAPABLE

• Terms and limitations apply. See onstar.com or dealer for details.)

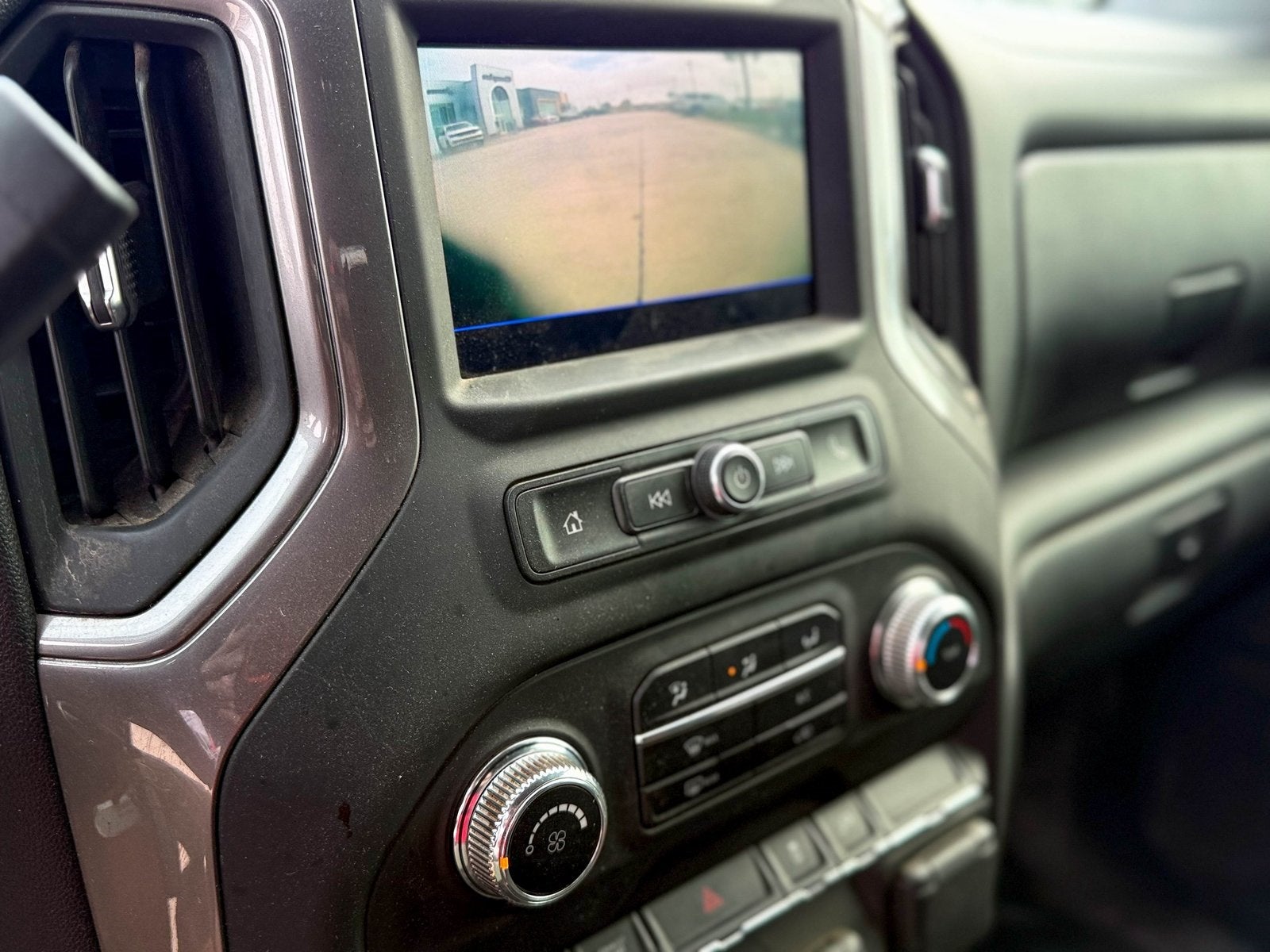

REAR CAMERA KIT

• Kit includes camera
• fixed position bracket & 19 ft cable with attachment clips. Rear camera radio calibration provided from the factory. See Upfitter Integration Bulletin for installation instructions at www.gmupfitter.com

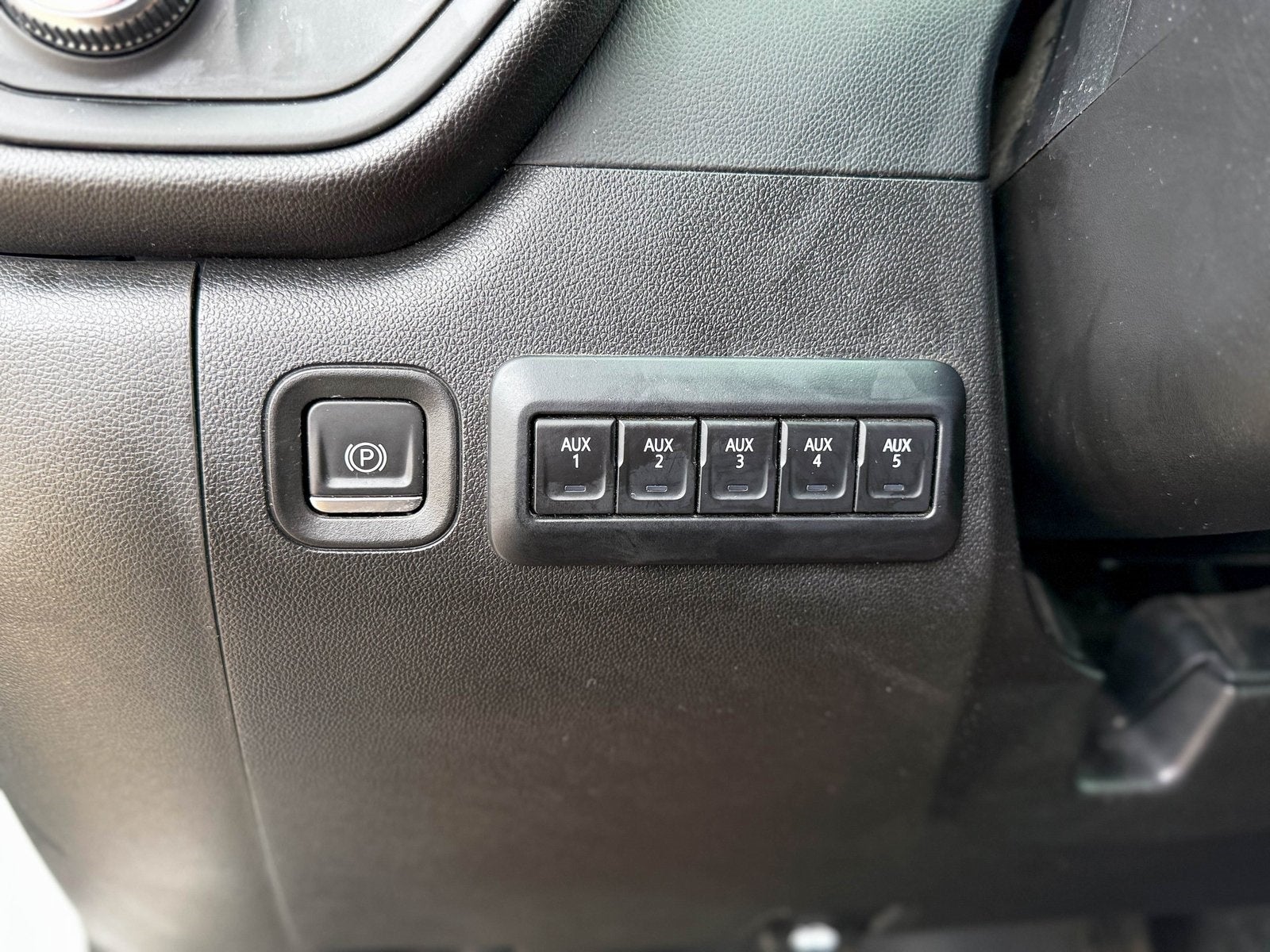

UPFITTER SWITCH KIT, (5)

• Provides 3-30 amp and 2-20 amp configurable circuits to facilitate installation of aftermarket electrical accessories. Kit with all required parts will be shipped loose with the truck for installation by the dealer or upfitter at customer expense. Installation instructions and technical assistance available at www.gmupfitter.com.

SKID PLATES

• protect the oil pan
• front axle and transfer case

3 YEARS OF ONSTAR & CONNECTED SERVICES PLAN

• see onstar.com for information. Access the entire suite of OnStar Safety & Security Services and Connected Services. For retail customers
• this includes the OnStar Guardian app
• connectivity for available In-Vehicle Apps
• In-Vehicle Wi-Fi Hotspot data and Remote Access through the myGMC mobile app. Fleet customers will receive OnStar Vehicle Insights instead of Remote Access. Eligible vehicles receive 3-years of the OnStar and Connected Services Premium Plan
• including the Connected Vehicle Plan and the OnStar Safety & Security Plan. Connected Vehicle Plan includes connectivity for available in-vehicle apps
• Remote Access Plan (excluding Fleet vehicles
• which will receive OnStar Vehicle Insights) and In-Vehicle Wi-Fi Hotspot data. OnStar Safety & Security Plan includes access to the OnStar Guardian App
• Automatic Crash Response
• Emergency Services
• Crisis Assist
• Roadside Assistance and Stolen Vehicle Assistance.)

SIRIUSXM RADIO

• enjoy a Platinum Plan trial subscription with over 150 channels including commercial-free music
• plus sports
• news and entertainment. Plus listening on the SiriusXM app
• online and at home on compatible connected devices is included
• so you'll hear the best SiriusXM has to offer
• anywhere life takes you. Welcome to the world of SiriusXM.

SPARE TIRE DELETE

• (STD)

• 120-Volt Instrument Panel Power Outlet (400 Watts)
• 14,000 lbs (6,350 Kgs) GVWR
• 17' Painted Steel Wheels
• 2-Speed Active Transfer Case
• 3 Years of OnStar & Connected Services Plan
• 4-Way Manual Driver Seat Adjuster
• 4-Way Manual Passenger Seat Adjuster
• Dual 220-Amps Primary and 170-Amps Auxiliary Alternators
• Federal Emissions Requirements
• Front License Plate Kit
• Heavy Duty Front Spring Package
• Integrated Trailer Brake Controller
• Jet Black
• SEO: Rear Camera Kit
• SiriusXM Radio
• Skid Plates
• Summit White
• Suspension Package
• Upfitter Switch Kit (5)
• AM/FM Radio with GMC Infotainment System
• Convenience Package

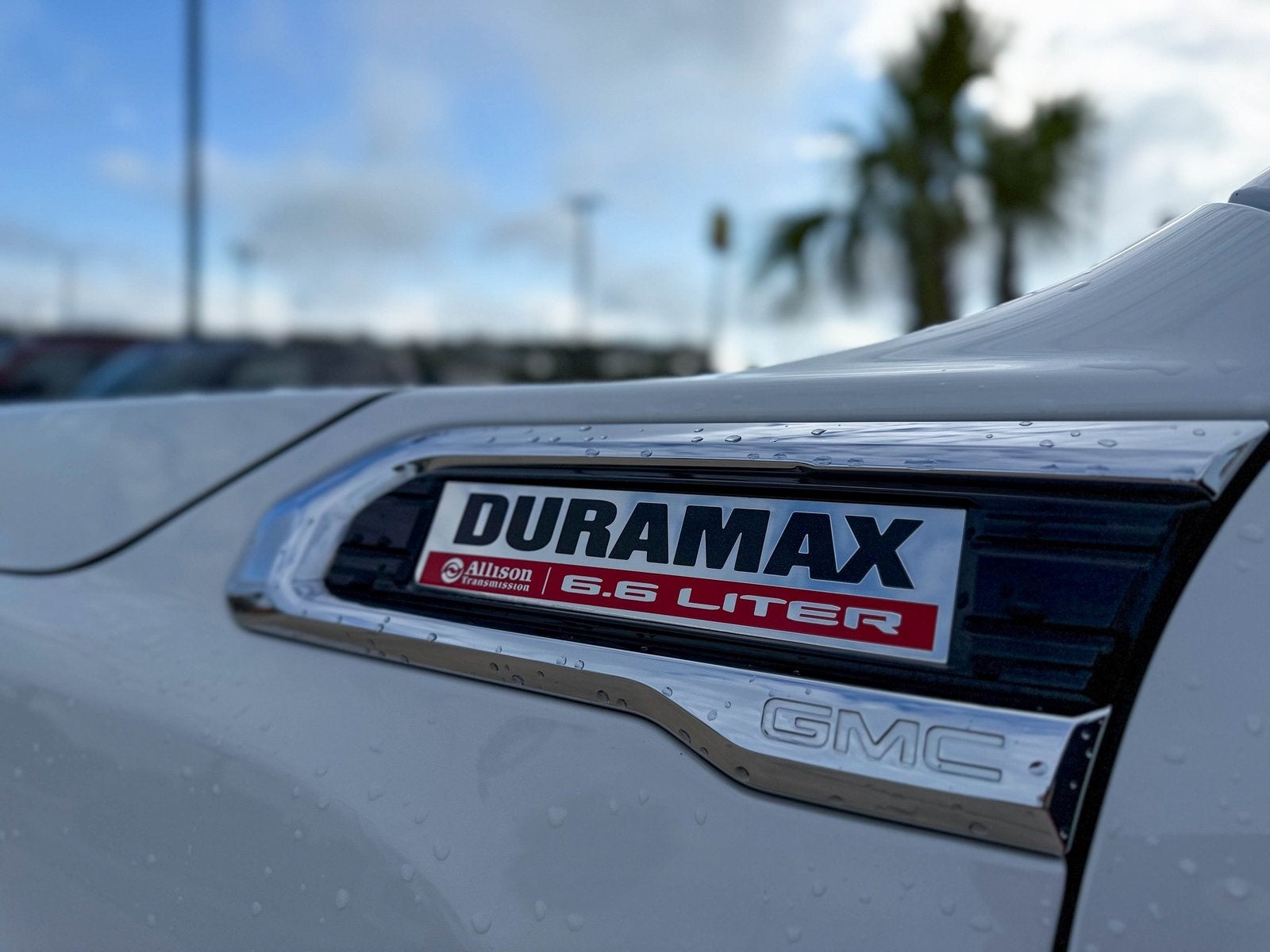

• Duramax 6.6L Turbo-Diesel V8 Engine
• OnStar and GMC Connected Services Capable
• Preferred Equipment Group 1SA
• 12V power outlets 1 12V power outlet
• 17' Painted Steel Wheels
• 170 Amp Alternator
• 2-Speed Electronic Shift Transfer Case
• 3-point seatbelt Rear seat center 3-point seatbelt
• 3.42 Rear Axle Ratio
• 3.73 Rear Axle Ratio
• 4-Wheel Disc Brakes
• 6 Speakers
• 6-Speaker Audio System Feature
• ABS brakes
• ABS Brakes 4-wheel antilock (ABS) brakes
• ABS Brakes Four channel ABS brakes
• Accessory power Retained accessory power
• Air Conditioning
• Air conditioning Yes
• Alternator Type Dual alternator
• AM/FM radio
• Antenna Fixed audio antenna
• Apple CarPlay/Android Auto
• Armrests front center Front seat center armrest
• Armrests front storage Front seat armrest storage
• Audio theft deterrent Audio system theft deterrent
• Auto door locks Auto-locking doors
• Auto headlights Auto on/off headlight control
• Auxiliary camera
• Basic warranty 36 month/36,000 miles
• Battery charge warning
• Battery run down protection
• Battery type Dual lead acid batteries
• Beverage holders Front beverage holders
• Block heater Engine block heater
• Body panels Galvanized steel/aluminum body panels with side impact beams
• Brake assist
• Brake assist system
• Brake pad warning Brake pad wear indicator
• Brake type 4-wheel disc brakes
• Bumper rub strip front Black front bumper rub strip
• Bumpers front Chrome front bumper
• Bumpers: chrome
• Cab mounted cargo light
• Cabback insulator
• Child door locks Manual rear child safety door locks
• Chrome Surround Grille w/Black Mesh
• Clearance lights Cab clearance lights
• Climate control Manual climate control
• Clock Digital clock
• Compass
• Compressor Intercooled turbo
• Convex spotter Driver and passenger convex spotter mirrors
• Corrosion perforation warranty 72 month/100,000 miles
• Cruise control Cruise control with steering wheel mounted controls
• Cylinder head material Aluminum cylinder head
• Day/Night rearview mirror
• Deep-Tinted Glass
• DEF fluid gauge Diesel exhaust fluid (def) gauge
• Delay off headlights Delay-off headlights
• Delay-off headlights
• Door ajar warning
• Door bins front Driver and passenger door bins
• Door bins rear Rear door bins
• Door handle material Black door handles
• Door locks Power door locks with 2 stage unlocking
• Door mirror style Black door mirrors
• Door mirror type Manual extendable trailer mirrors
• Drive type Four-wheel drive
• Driver door bin
• Driver foot rest
• Driver information center
• Driver seat direction Driver seat with 4-way directional controls
• Dual 220-Amps Primary/170-Amps Aux Alternators
• Dual front impact airbags
• Dual front side impact airbags
• Dual rear wheels
• Electric Rear-Window Defogger
• Electronic Stability Control
• Electronic stability control StabiliTrak w/Proactive Roll Avoidance electronic stability control system with anti-roll
• Emergency SOS Capable OnStar and GMC Connected Services capable vehicle integrated emergency SOS system
• Emissions Federal emissions
• Engine Block Heater
• Engine block material Iron engine block
• Engine cooler Engine oil cooler
• Engine Cylinders Duramax V8
• Engine Duramax 6.6L V-8 diesel direct injection, intercooled turbo, diesel, engine with 445HP
• Engine Location Front mounted engine
• Engine Mounting direction Longitudinal mounted engine
• Engine retarder Engine retarder system
• Engine temperature warning
• Engine/electric motor temperature gauge
• Exhaust Brake
• External memory GMC Infotainment System external memory control
• First-row windows Power first-row windows
• Floor coverage Full floor coverage
• Floor covering Full vinyl floor covering
• Folding door mirrors Manual folding door mirrors
• Folding rear seats 60-40 folding rear seats
• Front 40/20/40 Split-Bench Seat
• Front anti-roll bar
• Front anti-roll Front anti-roll bar
• Front beverage holders
• Front Center Armrest w/Storage
• Front head restraint control Manual front seat head restraint control
• Front head restraints Height adjustable front seat head restraints
• Front impact airbag driver Driver front impact airbag
• Front impact airbag passenger Passenger front impact airbag
• Front reading lights
• Front seat type Split-bench front seat
• Front seat upholstery Vinyl front seat upholstery
• Front seatback upholstery Plastic front seatback upholstery
• Front side impact airbag driver Seat mounted side impact driver airbag
• Front side impact airbag passenger Seat mounted side impact front passenger airbag
• Front wheel independent suspension
• Fuel Type Diesel
• Fully automatic headlights
• Gauge cluster display size (inches) Gauge cluster display size: 3.50
• Gearshifter material Urethane gear shifter material
• Glove box Locking glove box
• Grille style Black grille with chrome surround
• Handsfree Bluetooth® handsfree wireless device connectivity
• HD front springs Heavy-duty front springs
• Headlight type Reflector headlights
• Headlights LED low and high beam headlights
• Headlights on reminder
• Headliner coverage Full headliner coverage
• Headliner material Cloth headliner material
• Heated door mirrors Heated driver and passenger side door mirrors
• Heavy-Duty 80 Amp Battery
• High mount stop light High mounted center stop light
• High-Visibility Molded in Black Outside Mirrors
• Hill start assist Hill Start Assist (HSA)
• Ignition Compression ignition system
• Illuminated entry
• Immobilizer
• Instrumentation display Analog instrumentation display
• Interior 120V AC power outlets 1 interior 120V AC power outlet
• Interior courtesy lights Fade interior courtesy lights
• Internet access Wi-Fi Hotspot capable mobile hotspot internet access
• Key in vehicle warning
• Keyfob keyless entry
• Keyfob window controls Keyfob window control
• License plate front bracket Front license plate bracket
• Lock-up transmission
• Locking hub control Auto locking hub control
• Low level warnings Low level warning for coolant, fuel, washer fluid, brake fluid and diesel exhaust fluid (DEF)
• Low tire pressure warning
• Low tire pressure warning Tire specific low air pressure warning
• Maintenance warranty 12 month/unlimited
• Manual driver seat controls Driver seat manual reclining and fore/aft control
• Manual passenger seat controls Passenger seat manual reclining and fore/aft control
• Mobile app access
• Multiple headlights Multiple enclosed headlights
• Number of airbags 6 airbags
• Number of beverage holders 4 beverage holders
• Number of doors 4 doors
• Number of first-row screens 1 total number of 1st row displays
• Occupancy sensor Airbag occupancy sensor
• Occupant sensing airbag
• Oil pressure gauge
• Oil pressure warning
• Onboard power supply (kW) 0.400 kW
• One-touch down window Front and rear one-touch down windows
• One-touch up window Driver one-touch up window
• OnStar & GMC Connected Services Capable
• Outside temperature display
• Overdrive transmission
• Overhead airbag
• Overhead airbags Curtain first and second-row overhead airbags
• Overhead console
• Overhead console Mini overhead console
• Paint Non-metallic paint
• Passenger door bin
• Passenger doors rear left Conventional left rear passenger door
• Passenger doors rear right Conventional right rear passenger door
• Passenger seat direction Front passenger seat with 4-way directional controls
• Passenger vanity mirror
• Perimeter approach lighting Remote activated perimeter approach lighting
• Power Rear Windows w/Express Down
• Power steering
• Power windows
• Power-Adjustable Black Outside Mirrors
• Powertrain type ICE
• Powertrain warranty 60 month/60,000 miles
• Premium audio system: GMC Infotainment System
• Primary display size 7 inch primary display
• Primary display touchscreen Primary monitor touchscreen
• Radiator
• Radio AM/FM/SiriusXMsatellite
• Radio: AM/FM w/GMC Infotainment System
• Rear head restraint control 2 rear seat head restraints
• Rear head restraint control Manual rear seat head restraint control
• Rear head restraints Height adjustable rear seat head restraints
• Rear locking differential Automatic rear locking differential
• Rear reading lights
• Rear seat check warning
• Rear seat direction Front facing rear seat
• Rear seat folding position Fold-up rear seat cushion
• Rear seat upholstery Vinyl rear seat upholstery
• Rear seatback upholstery Carpet rear seatback upholstery
• Rear seats fixed or removable Fixed rear seats
• Rear seats Split-bench rear seat
• Rear Springs Regular grade rear springs
• Rear under seat ducts Rear under seat climate control ducts
• Rear window defroster
• Rear windshield Fixed rear windshield
• Remote Keyless Entry
• Remote panic alarm
• Restricted driving mode/alerts
• Roadside warranty 60 month/60,000 miles
• Running lights LED daytime running lights
• Satellite trial 3 month satellite trial subscription
• Seatbelt pretensioners Front seatbelt pretensioners
• Seatbelt pretensioners number 2 seatbelt pre-tensioners
• Seating capacity 6
• Second-row windows Power second-row windows
• Seek scan
• Selectable mode transmission Tow/Haul Mode selectable mode transmission
• Service interval warning Service interval indicator
• Shock absorbers Gas-pressurized shock absorbers
• Skid plate 3 underbody skid plates
• Smart device integration Apple CarPlay/Android Auto smart device mirroring
• Solar Absorbing Tinted Glass
• Speakers number 6 speakers
• Speakers Standard grade speakers
• Special paint Monotone paint
• Speedometer Redundant digital speedometer
• Split folding rear seat
• Split front seats 40-20-40 split-bench front seat
• Springs front Front torsion springs
• Springs rear Rear leaf springs
• Steering Hydraulic power-assist steering system
• Steering type Re-circulating ball steering
• Steering wheel material Urethane steering wheel
• Steering wheel tilt Manual tilting steering wheel
• Steering Wheel-Mounted Cruise Control
• Suspension Heavy-duty ride suspension
• Suspension ride type front Independent front suspension
• Suspension ride type rear Rigid axle rear suspension
• Suspension type front Short and long arm front suspension
• Suspension type rear Leaf spring rear suspension
• Tachometer
• Tailpipe Stainless steel single exhaust
• Temperature display Exterior temperature display
• Tilt steering wheel
• Tire pressure Tire Fill Alert tire pressure fill assist
• Tires LT235/80SR17 highway BSW front and rear tires
• Tow hooks front 2 front tow hooks
• Towing brake controller Trailer brake controller
• Towing trailer sway Trailer sway control
• Traction control
• Traction control All-speed ABS and driveline traction control
• Transfer case Electronic transfer case shift
• Transmission Allison 10-speed automatic
• Transmission electronic control
• Transmission fluid temperature warning Transmission fluid temp warning
• Transmission oil cooler
• Transmission Type Automatic
• Trip computer
• Trip odometer
• Turn signal in door mirrors Turn signal indicator in door mirrors
• Turn signal warning Turn signal on warning
• Turn-by-turn nav OnStar Turn-by-Turn Navigation
• Upfitter switches
• USB ports 2 USB ports
• Variable panel light Variable instrument panel light
• Variably intermittent wipers
• Vehicle tracker Stolen Vehicle Assistance vehicle tracker with vehicle slowdown
• Ventilated brakes Front and rear ventilated disc brakes
• Vinyl Seat Trim
• Visor passenger mirror Passenger visor mirror
• Voice activated audio GMC Infotainment System voice activated audio controls
• Voltmeter
• Wheel covers Wheel hub covers
• Wheels 17 x 6.5-inch front and dual rear painted steel wheels
• Wi-Fi Hotspot Capable
• Window Trim Black side window trim
• Winter Grille Cover
• Wipers Variable intermittent front windshield wipers
• Wireless streaming Bluetooth® wireless audio streaming

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Cold Cranking Amps @ 0° F (Primary): 720
• Cold Cranking Amps @ 0° F (2nd): 730
• Maximum Alternator Capacity (amps): 390
• Maximum Alternator Capacity (amps): 170
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 6000
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Rear (lbs): 10500
• Curb Weight - Front (lbs): 4114
• Curb Weight - Rear (lbs): 2796
• Gross Vehicle Weight Rating Cap (lbs): 14000
• Gross Combined Wt Rating (lbs): 40000
• Gross Combined Wt Rating (lbs): 24000
• Suspension
• Suspension Type - Front: Short Long Arm w/Torsion Bar
• Suspension Type - Rear: 3-Stage Multi-Leaf Spring
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.42
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 51
• Shock Absorber Diameter - Rear (mm): 51
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14 x 1.6
• Rear Brake Rotor Diam x Thickness (in): 14 x 1.6
• Tires
• Front Tire Order Code: QQO
• Rear Tire Order Code: QQO
• Front Tire Size: LT235/80R17E
• Rear Tire Size: LT235/80R17E
• Front Tire Capacity (lbs): 3085
• Front Tire Capacity (lbs): 2805
• Front Tire Capacity (lbs): 2680
• Rear Tire Capacity (lbs): 2833
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Wheels
• Front Wheel Size (in): 17 x - TBD -
• Rear Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 57.5
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed Fully-Boxed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 63.5
• Fuel Tank Location: Front & Rear
• Exterior Dimensions
• Wheelbase (in): 176.79
• Length, Overall (in): 270.3
• Width, Max w/o mirrors (in): 80.84
• Height, Overall (in): 80.1
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 157.14
• Cab to Axle (in): 60
• Cab to End of Frame (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): 89.15
• Ground Clearance, Front (in): 8.15
• Ground Clearance, Rear (in): 8.15
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 43.03
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.02
• Front Hip Room (in): 61
• Second Head Room (in): 40.12
• Second Leg Room (in): 43.4
• Second Shoulder Room (in): 65.3
• Second Hip Room (in): 61
• Summary
• Vehicle Name: GMC Sierra 3500HD CC
• Body Style: Crew Cab Chassis Cab
• Body Code: ZW9
